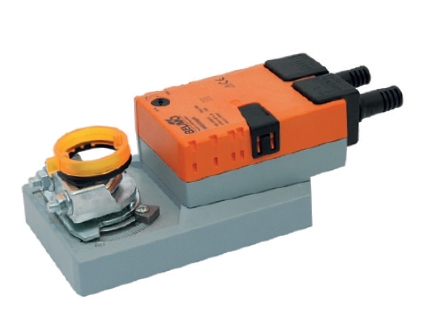

LM 24 A-SR actuatorElektrické příslušenství
 Catalog sheet |  |  Service instructions | | 2D/3D CAD | 163.31 EUR |
Technical parameters
| Napájení | Krytí | Teplota okolí [°C] | Připojení | Osa klapky [mm] | Směr otáčení | Pracovní úhel | Kroutící moment [Nm] | Doporučená plocha [m2] |
|---|---|---|---|---|---|---|---|---|
| AC/DC24V | IP54 | -30 až +50 | kabel 1 m/svorky TP | 6 .. 20 | volit. přepínačem | max. 95° | 5 | 1 |

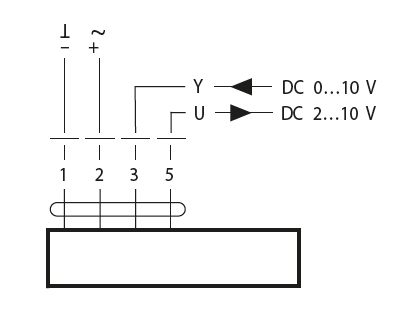

 | Informace • klapkový pohon pro přestavování vzduchotechnických klapek ve vzduchotechnických a klimatizačních zařízeních budov • otočný pohon bez zpětné pružiny • ovládání spojité: ovládání řídicím signálem Y: DC 0 ... 10V, 100 kΩ (pracovní rozsah DC 2...10 V | |
